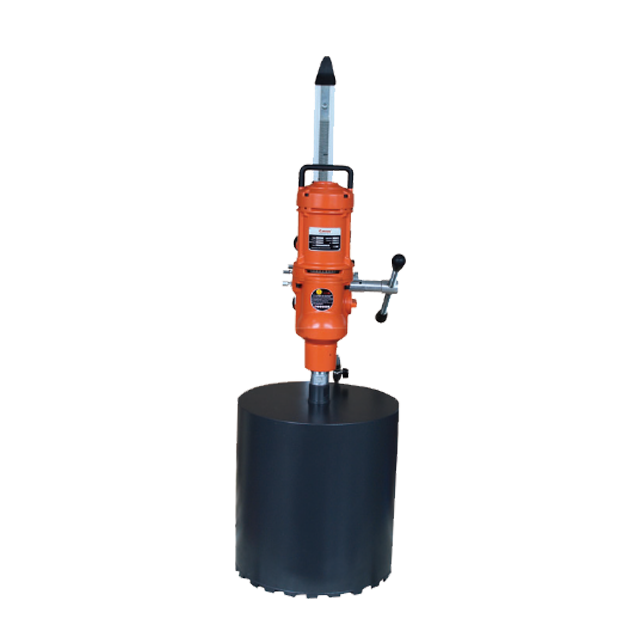

800彩票 Adjustable aluminum alloy frame, can be drilling inclined hole 0-45.Light, easy to transport and
install drill frame tight and equipped with wheels.Vacuum base, can quickly, easily set up.Frame
with general fast connecting block, quick installation and is suitable for the majority of products
On the market. Base, frame, the bracket and all adjstabale
screw can be used with the pushing handle attached to adjust.
|
Concrete Drilling Range(mm) | Rated Voltage(v) | Rated Frequency(Hz) |
Rated Input Power(w) |
No-load Speed(rpm) | Cable length(m) | Borehole Depth(mm) |
Net/Gross Weight(Kgs) |
Packing Size(cm) |
|---|---|---|---|---|---|---|---|---|---|
| SCY-4050C | ~16”(~405) | 110/220~ | 50-60 | 5180 | 340/530 | 3.5 | 600 | 32/35 | 104*38*24 |
| SCY-4050CE | ~16”(~405) | 110/220~ | 50-60 | 5180 | 100-340/530 | 3.5 | 600 | 32/35 | 104*38*24 |
| SCY-4050/3C | ~16”(~405) | 110/220~ | 50-60 | 5180 | 330/500/660 | 3.5 | 600 | 32/35 | 104*38*24 |
| SCY-4050/3CE | ~16”(~405) | 110/220~ | 50-60 | 5180 | 100-330/500/660 | 3.5 | 600 | 32/35 | 104*38*24 |
| SCY-4550C | ~18”(~455) | 110/220~ | 50-60 | 5380 | 300/470 | 3.5 | 600 | 33/36 | 104*38*24 |
| SCY-4550CE | ~18”(~455) | 110/220~ | 50-60 | 5380 | 100-300/470 | 3.5 | 600 | 33/36 | 104*38*24 |
| SCY-4550/3C | ~18”(~455) | 110/220~ | 50-60 | 5380 |
290/430/580 |
3.5 | 600 | 33/36 | 104*38*24 |
| SCY-4550/3CE | ~18”(~455) | 110/220~ | 50-60 | 5380 | 100-290/430/580 | 3.5 | 600 | 33/36 | 104*38*24 |
| SCY-5050C | ~20”(~505) | 110/220~ | 50-60 | 5380 |
280/420 |
3.5 | 600 | 34/37 | 104*38*24 |
| SCY-5050CE | ~20”(~505) | 110/220~ | 50-60 | 5380 | 100-280/420 | 3.5 | 600 | 34/37 | 104*38*24 |
| SCY-5050/3CE | ~20”(~505) | 110/220~ | 50-60 | 5380 | 280/420/550 | 3.5 | 600 | 34/37 | 104*38*24 |
| SCY-5050/3CE | ~20”(~505) | 110/220~ | 50-60 | 5380 | 100-280/420/550 | 3.5 | 600 | 34/37 | 104*38*24 |
